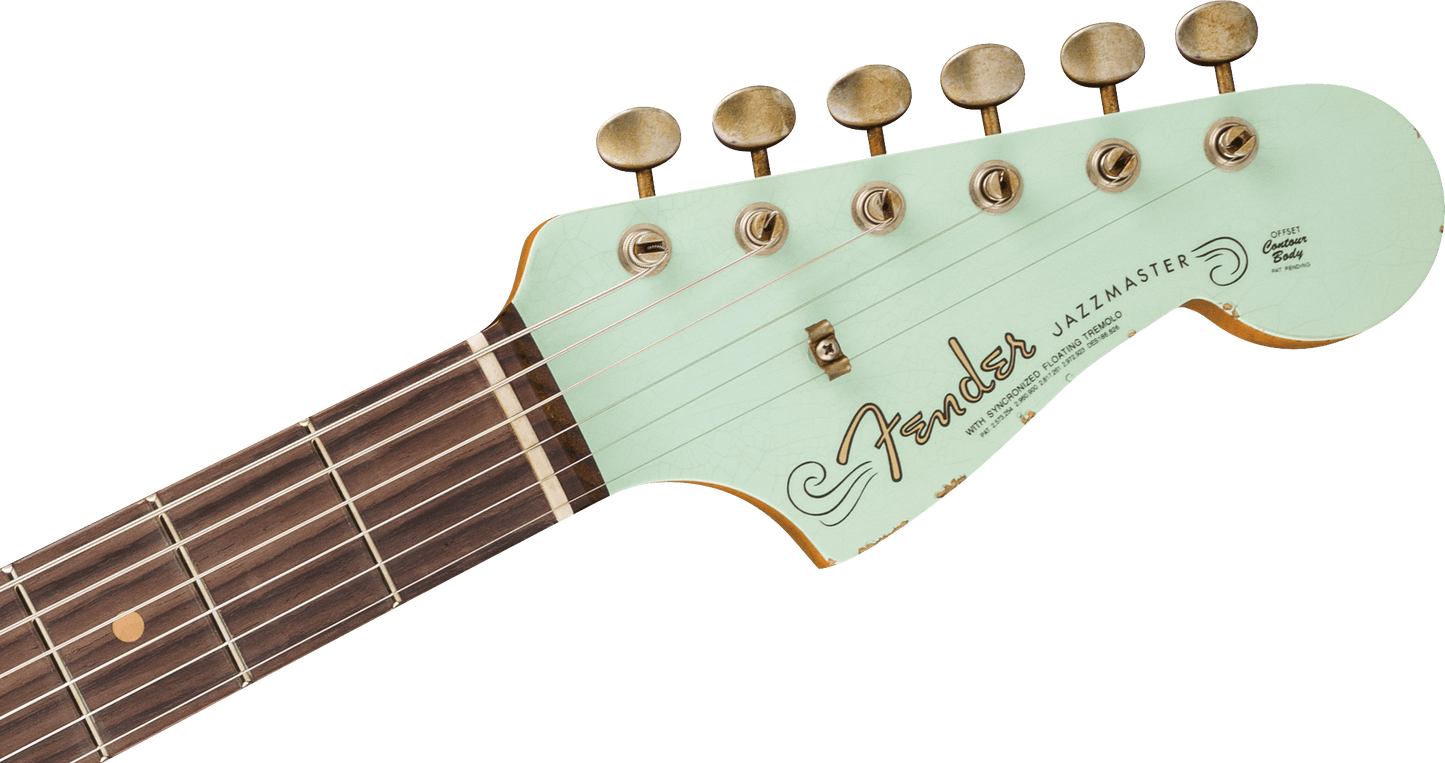

1963 Jazzmaster® Relic®
1963 Jazzmaster® Relic®
1963 Jazzmaster® Relic®
Details
Summary
Übersicht
Take a journey back to the early '60s with the 1963 Jazzmaster® Relic® from Fender Custom Shop's Time Machine™ series. This electric guitar authentically captures the vibe of an original '63 Jazzmaster that's been lovingly played for decades.
The 2-piece select alder body and quartersawn maple neck are finished in a nitrocellulose lacquer for that aged, worn-in feel. The fretboard is made of smooth 3A rosewood and has 21 narrow tall frets. Vintage-style tuning machines with Fender logos and an RSD Jaguar®/Jazzmaster® bridge round out the hardware.
For classic Jazzmaster tone, it features a Custom Shop Hand-Wound Jazzmaster neck pickup and Custom Shop Hand-Wound Jazzmaster bridge pickup. The pickups are controlled by a 3-position toggle switch, a 2-position slide switch for lead/rhythm tones, master volume and master tone knobs.
Other premium features 1965 Strat® "C" Back-Shape, 3A Rosewood Fingerboard, 7.25" to 9.5" Vintage Compound Radius, Vintage Jazzmaster® Wiring, 3-Ply Parchment Pickguard, Vintage-Style Tuning Machines with Fender® Logo, Bone Nut, American Vintage '59-'64 String Tree, Deluxe Hardshell Case, Strap, Certificate of Authenticity.Accessories
Inhalt
Body
2-Piece Select Alder
Body Finish
Nitrocellulose Lacquer
Body Material
2-Piece Select Alder
Body Shape
Jazzmaster®
Body Style
Solid Body
Elektronik
Bridge Pickup
Custom Shop Hand-Wound Jazzmaster®
Controls
Master Volume, Master Tone
Neck Pickup
Custom Shop Hand-Wound Jazzmaster®
Pickup Configuration
SS
Switching
3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup (Lead Circuit), 2-Position Slide: Up: Lead Tone Circuit, Down: Rhythm Tone Circuit
Allgemein
Color

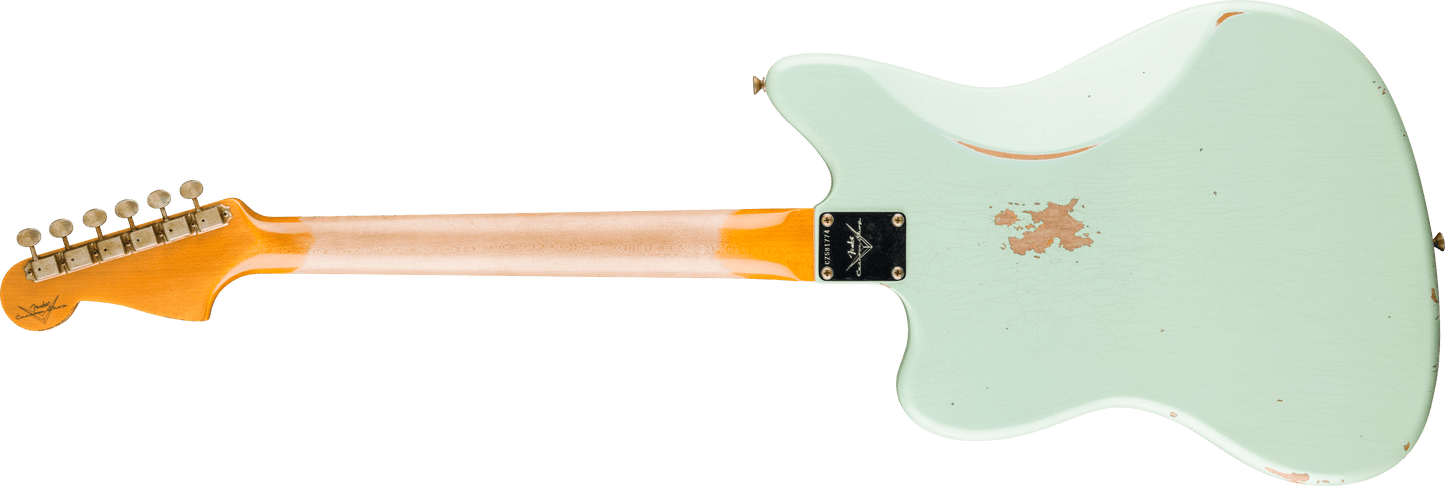

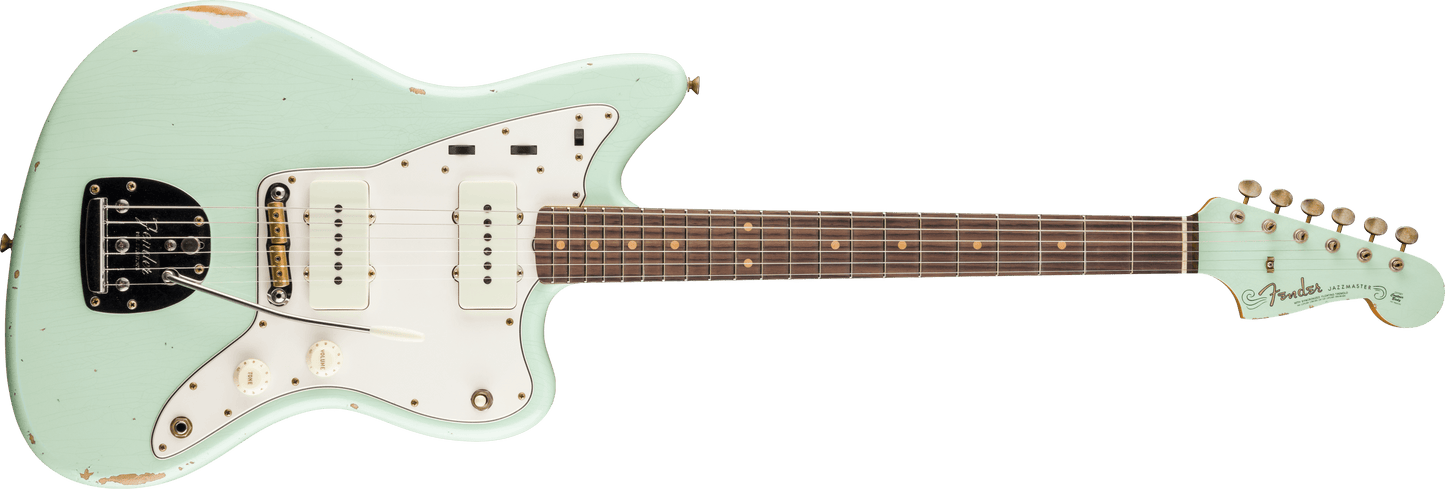

Aged Surf Green
Orientation
Right-Hand
Product Name
1963 Jazzmaster® Relic®, Rosewood Fingerboard, Aged Surf Green
Series
Time Machine™
Hardware
Bridge
RSD Jaguar®/Jazzmaster®
Control Knobs
Vintage White Plastic
Hardware Finish
Nickel/Chrome
Neck Plate
4-Bolt with Custom Shop "V" Logo, Serialized
Pickguard
3-Ply Parchment
String Trees
American Vintage '59-'64
Strings
Nickel Plated Steel (.010-.046 Gauges)
Tremolo Arm
Pop-In Vintage-Style Jazzmaster®

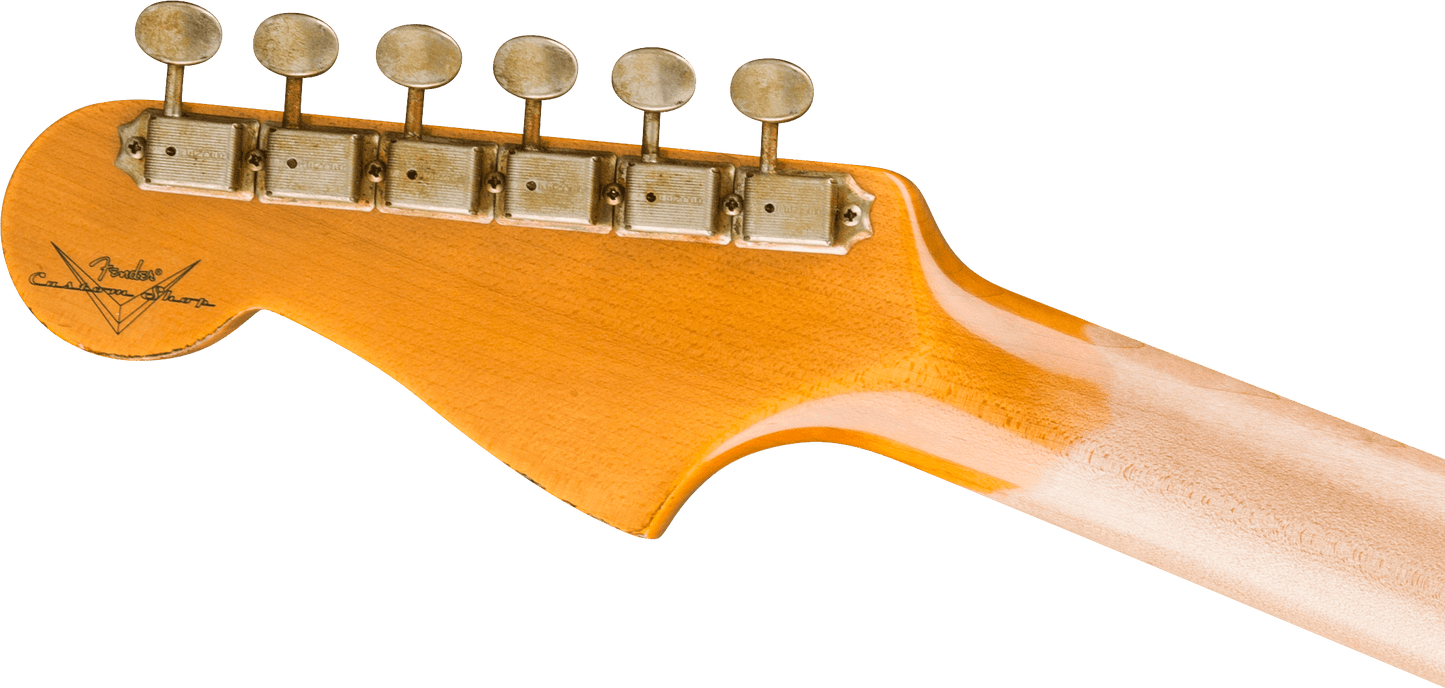

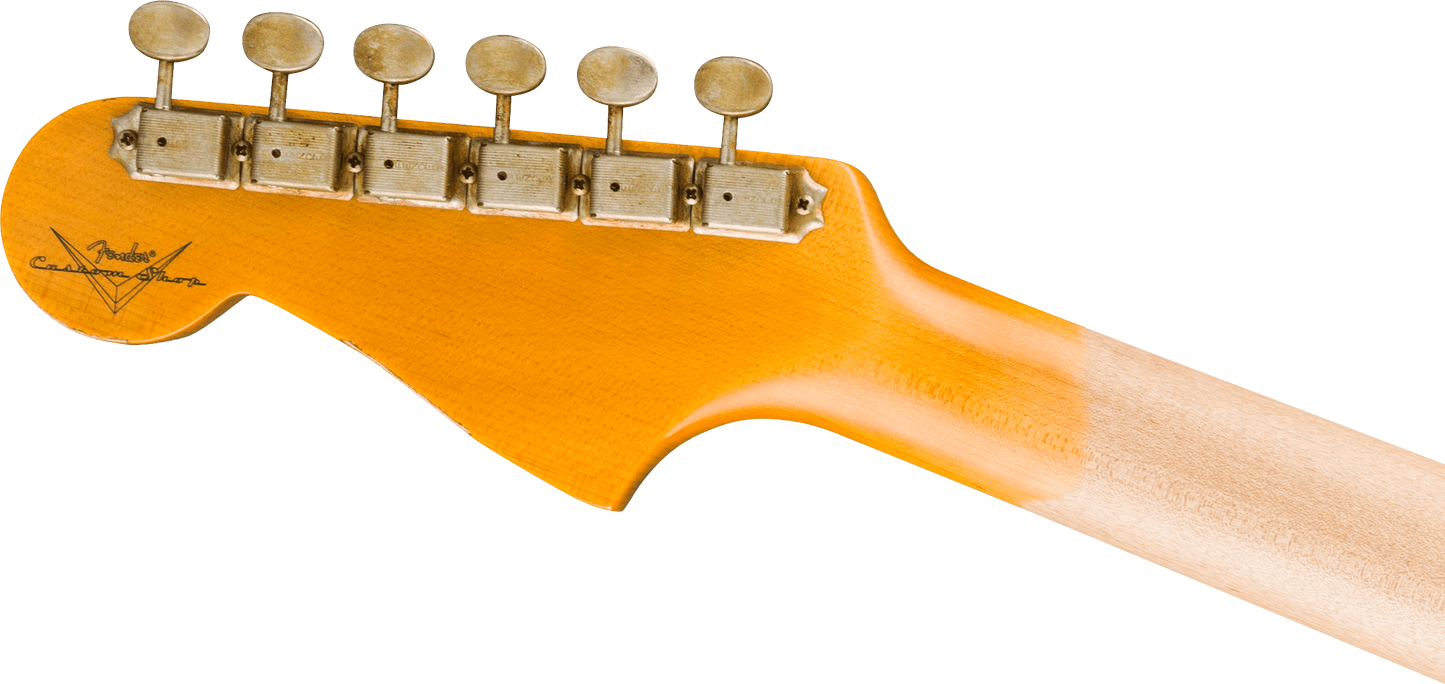

Tuning Machines
Vintage-Style with Fender® Logo
Measurements
Fret Size
Narrow Tall (6105)
Headstock Thickness
0.590"
Scale Length
25.5" (648 mm)
Hals
Fingerboard Material
3A Rosewood
Fingerboard Radius
7.25" to 9.5" Vintage Compound Radius (184 mm to 241 mm)

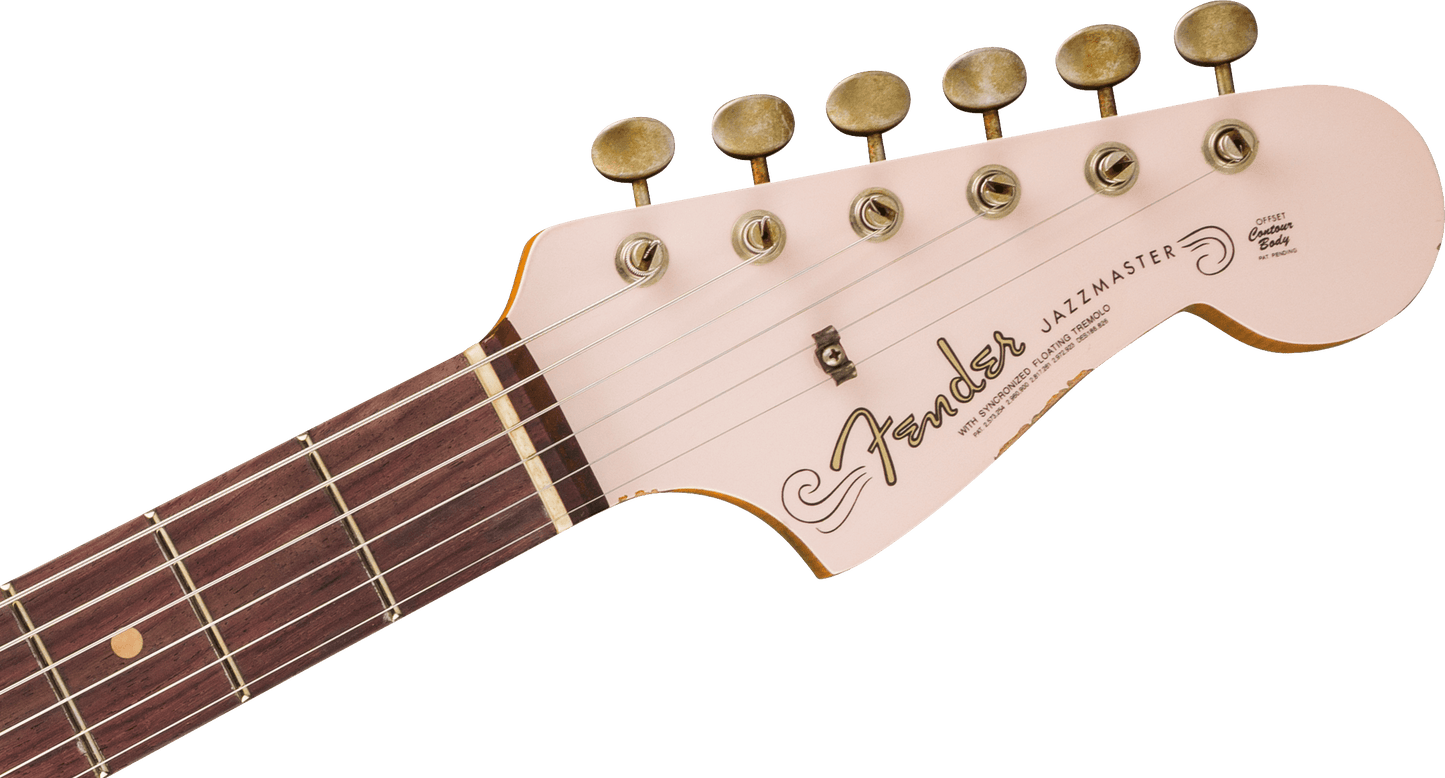

Headstock
Jazzmaster®
Neck Binding
None
Neck Butt Width
2.200"
Neck Finish
Nitrocellulose Lacquer
Neck Material
Quartersawn Maple
Neck Shape
1965 Strat® "C"
Neck Thickness
.840"
Neck Thickness 12th Fret
.920"
Number of Frets
21
Nut Material
Bone
Nut Width
1.650" (42 mm)
Position Inlays
Vintage Clay Dot
String Nut
Bone
Truss Rod
Early '60s
Accessories
Case/Gig Bag
Deluxe Hardshell
Included Accessories
Deluxe Hardshell Case, Strap and Certificate of Authenticity.
Inhalt
Body
2-Piece Select Alder
Body Finish
Nitrocellulose Lacquer
Body Material
2-Piece Select Alder
Body Shape
Jazzmaster®
Body Style
Solid Body
Elektronik
Bridge Pickup
Custom Shop Hand-Wound Jazzmaster®
Controls
Master Volume, Master Tone
Neck Pickup
Custom Shop Hand-Wound Jazzmaster®
Pickup Configuration
SS
Switching
3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup (Lead Circuit), 2-Position Slide: Up: Lead Tone Circuit, Down: Rhythm Tone Circuit
Allgemein
Color

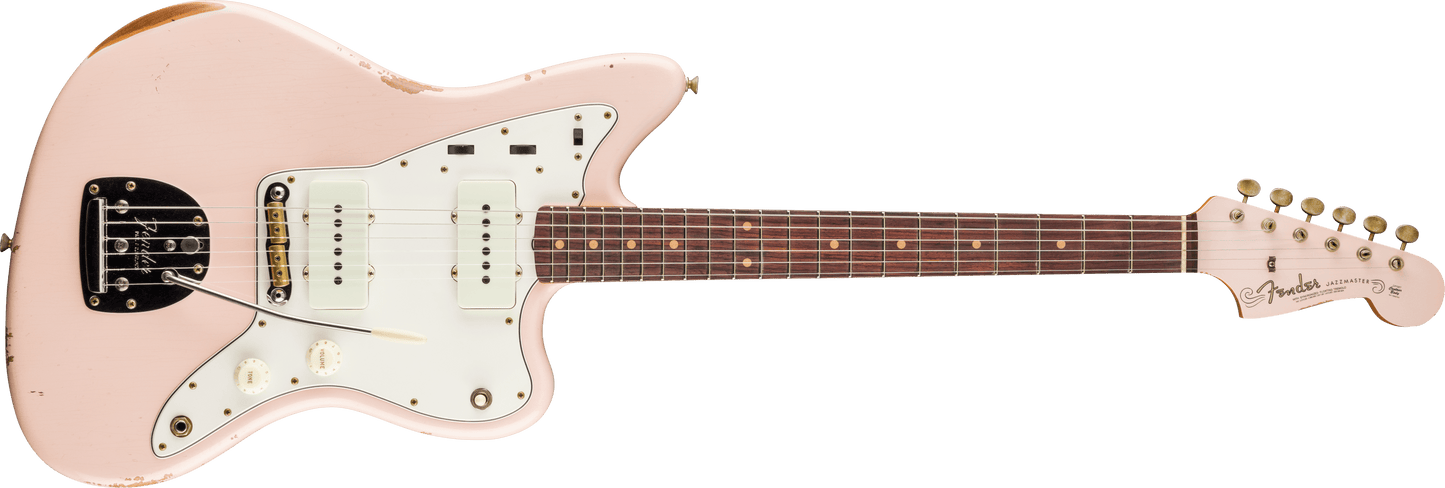

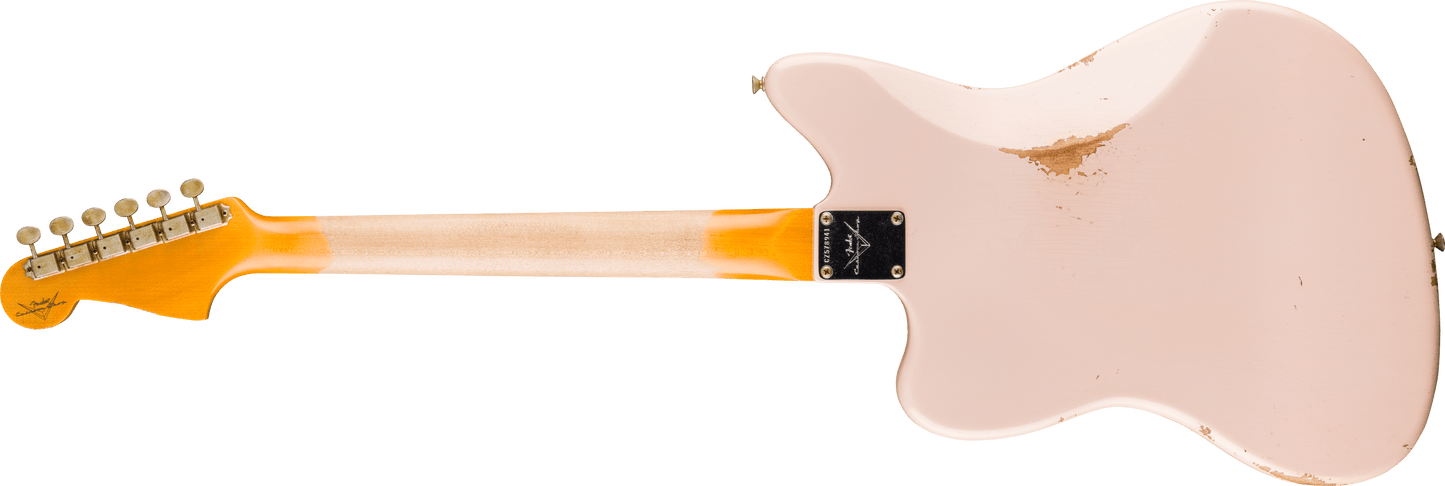

Aged Shell Pink
Orientation
Right-Hand
Product Name
1963 Jazzmaster® Relic®, Rosewood Fingerboard, Aged Shell Pink
Series
Time Machine™
Hardware
Bridge
RSD Jaguar®/Jazzmaster®
Control Knobs
Vintage White Plastic
Hardware Finish
Nickel/Chrome
Neck Plate
4-Bolt with Custom Shop "V" Logo, Serialized
Pickguard
3-Ply Parchment
String Trees
American Vintage '59-'64
Strings
Nickel Plated Steel (.010-.046 Gauges)
Tremolo Arm
Pop-In Vintage-Style Jazzmaster®
Tuning Machines
Vintage-Style with Fender® Logo
Measurements
Fret Size
Narrow Tall (6105)
Headstock Thickness
0.590"
Scale Length
25.5" (648 mm)
Hals
Fingerboard Material
3A Rosewood
Fingerboard Radius
7.25" to 9.5" Vintage Compound Radius (184 mm to 241 mm)
Headstock
Jazzmaster®
Neck Binding
None
Neck Butt Width
2.200"
Neck Finish
Nitrocellulose Lacquer
Neck Material
Quartersawn Maple
Neck Shape
1965 Strat® "C"
Neck Thickness
.840"
Neck Thickness 12th Fret
.920"
Number of Frets
21
Nut Material
Bone
Nut Width
1.650" (42 mm)
Position Inlays
Vintage Clay Dot
String Nut
Bone
Truss Rod
Early '60s
Accessories
Case/Gig Bag
Deluxe Hardshell
Included Accessories
Deluxe Hardshell Case, Strap and Certificate of Authenticity.
Inhalt
Body
2-Piece Select Alder
Body Finish
Nitrocellulose Lacquer
Body Material
2-Piece Select Alder
Body Shape
Jazzmaster®
Body Style
Solid Body
Elektronik
Bridge Pickup
Custom Shop Hand-Wound Jazzmaster®
Controls
Master Volume, Master Tone
Neck Pickup
Custom Shop Hand-Wound Jazzmaster®
Pickup Configuration
SS
Switching
3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup (Lead Circuit), 2-Position Slide: Up: Lead Tone Circuit, Down: Rhythm Tone Circuit
Allgemein
Color

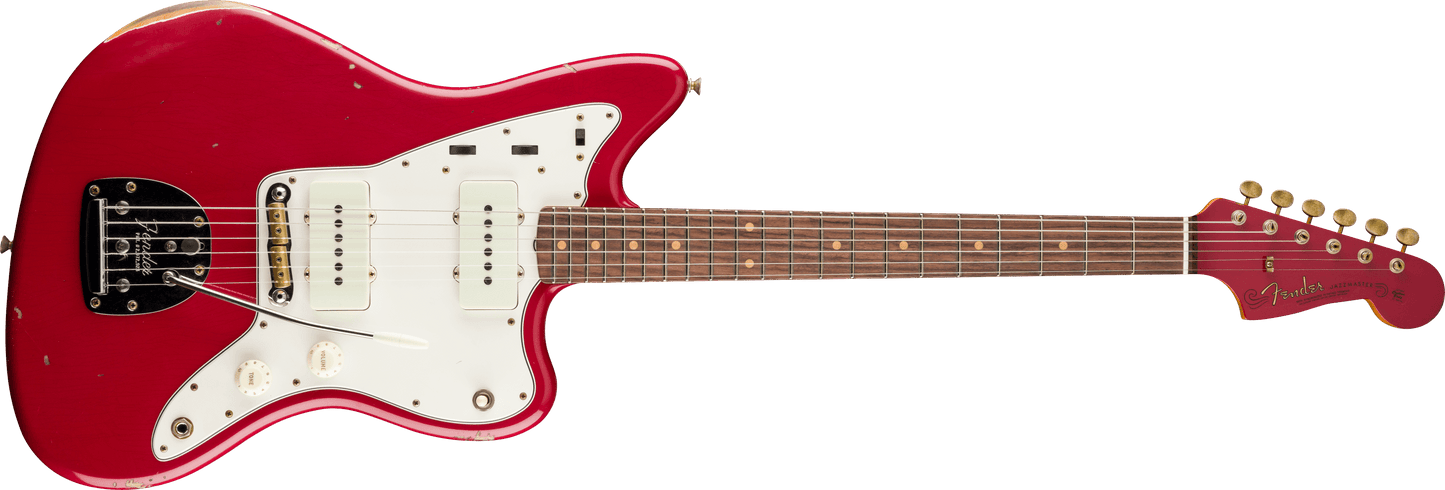

Cimarron Red
Orientation
Right-Hand
Product Name
1963 Jazzmaster® Relic®, Rosewood Fingerboard, Cimarron Red
Series
Time Machine™
Hardware
Bridge
RSD Jaguar®/Jazzmaster®
Control Knobs
Vintage White Plastic
Hardware Finish
Nickel/Chrome
Neck Plate
4-Bolt with Custom Shop "V" Logo, Serialized
Pickguard
3-Ply Parchment
String Trees
American Vintage '59-'64
Strings
Nickel Plated Steel (.010-.046 Gauges)
Tremolo Arm
Pop-In Vintage-Style Jazzmaster®
Tuning Machines
Vintage-Style with Fender® Logo
Measurements
Fret Size
Narrow Tall (6105)
Headstock Thickness
0.590"
Scale Length
25.5" (648 mm)
Hals
Fingerboard Material
3A Rosewood
Fingerboard Radius
7.25" to 9.5" Vintage Compound Radius (184 mm to 241 mm)
Headstock
Jazzmaster®
Neck Binding
None
Neck Butt Width
2.200"
Neck Finish
Nitrocellulose Lacquer
Neck Material
Quartersawn Maple
Neck Shape
1965 Strat® "C"
Neck Thickness
.840"
Neck Thickness 12th Fret
.920"
Number of Frets
21
Nut Material
Bone
Nut Width
1.650" (42 mm)
Position Inlays
Vintage Clay Dot
String Nut
Bone
Truss Rod
Early '60s
